Bag Making Machine with Zipper Attachment & Hanger Attachment Device

Request a Quote

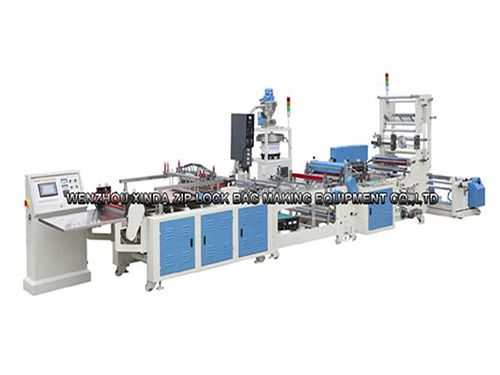

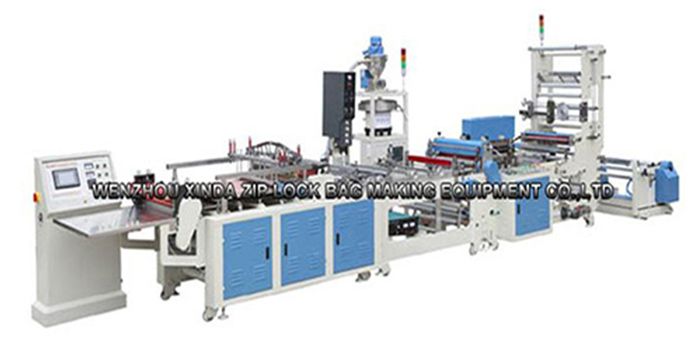

RT700D Bag making machine can produce PE/PP attached string zipper bags full automatically, and is especially suit for produce zippered garment bags. When it works, different types of zipper profiles thermal bonded onto the flat film and then turn into zipper bags.
It’s worth mentioning equipped with hanger attachment device, this machine can attach the zipper onto the zipper bags automatically, saving a lot labor cost and time.

Certainly, RT700D bag making machine can also produce slider zipper bag, single-lock zipper attached bags, double-lock zipper attached bags, pouch zipper bags and other re-sealable bags.

Main Technical Parameters
Model RT-700D
Production Speed 40-100 piece/minute
Width of bag ≤630mm
Length of bag ≤650mm
Thickness of Film 0.03-0.07mm(one layer)
Heater Power 3.0kw
Total Power 12.5kw
Main Motor Power 3kw
Overall dimension 6800 x 1400 x 1850 mm
Standard Configurations
  • EPC film unwinding unit
  • Mouth & Bottom Gusset
  • Zipper Attachment Unit
  • Ultrasonic sealing device
  • Hanger Attachment Device system
  • Cut on rubber roller by Iron knife
  • Swinging arm type transmission
  • Omron PLC computer controller system
  • Panasonic servomotor and servopack
  • Delta frequency inverter
Optional Devices
  • Auto worktable
  • Ultrasonic sealing device
  • Chiller
  • Triangle folding device.
