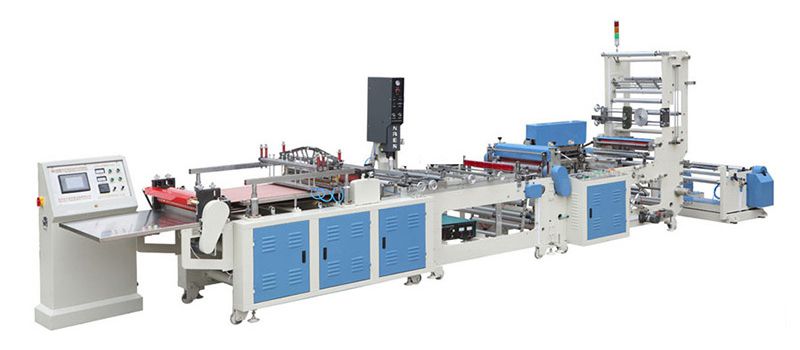

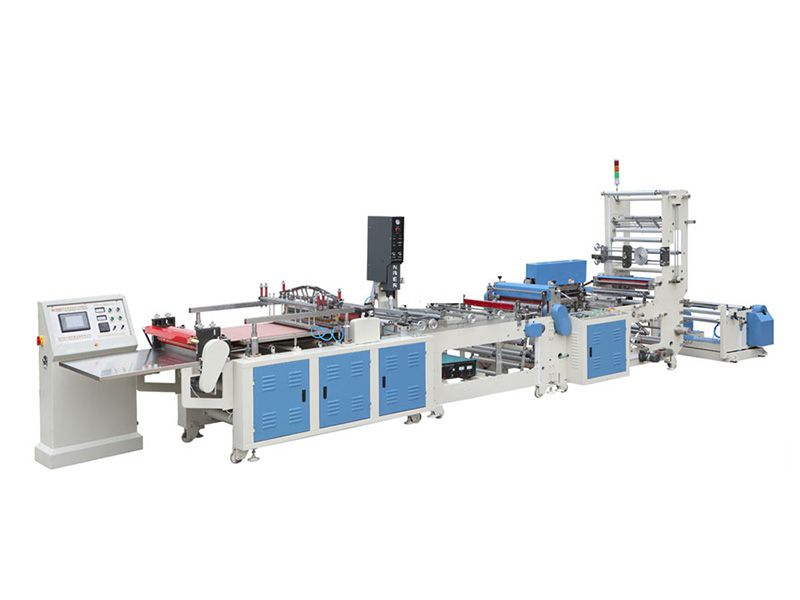

  5. RT-700B Zipper Bag Making Machine

Bag Making Machine with Zipper Attachment

Request a Quote

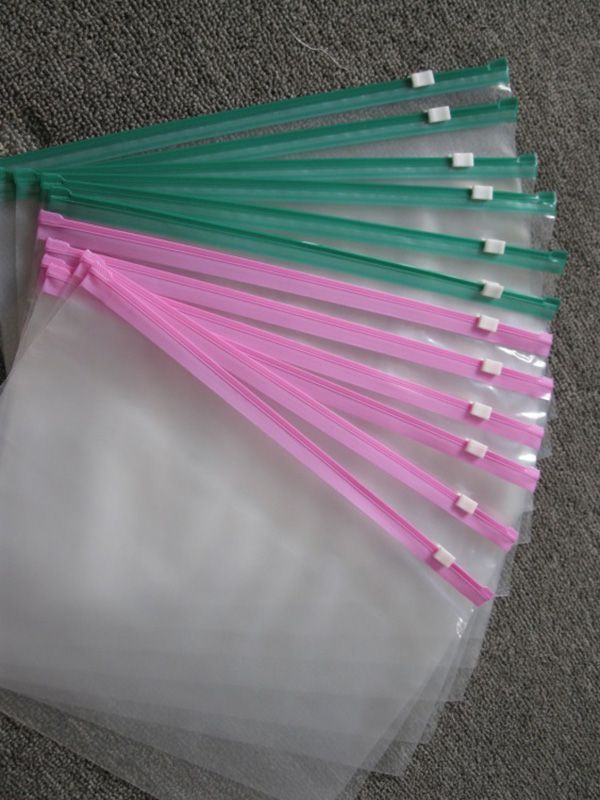

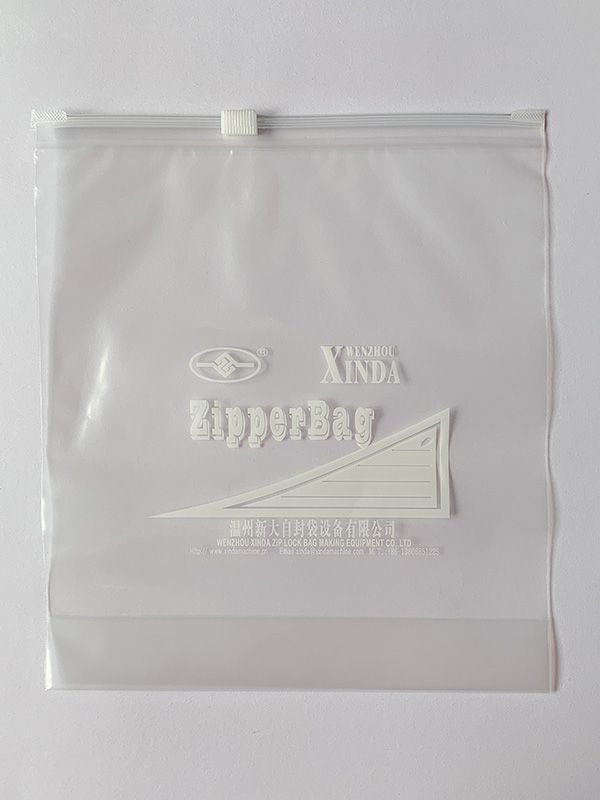

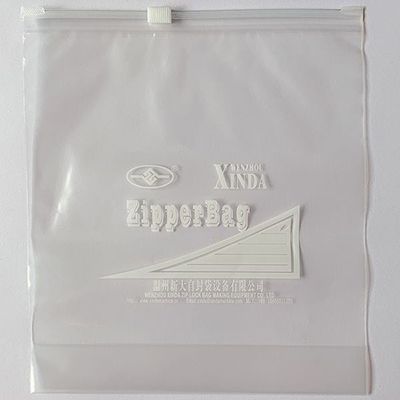

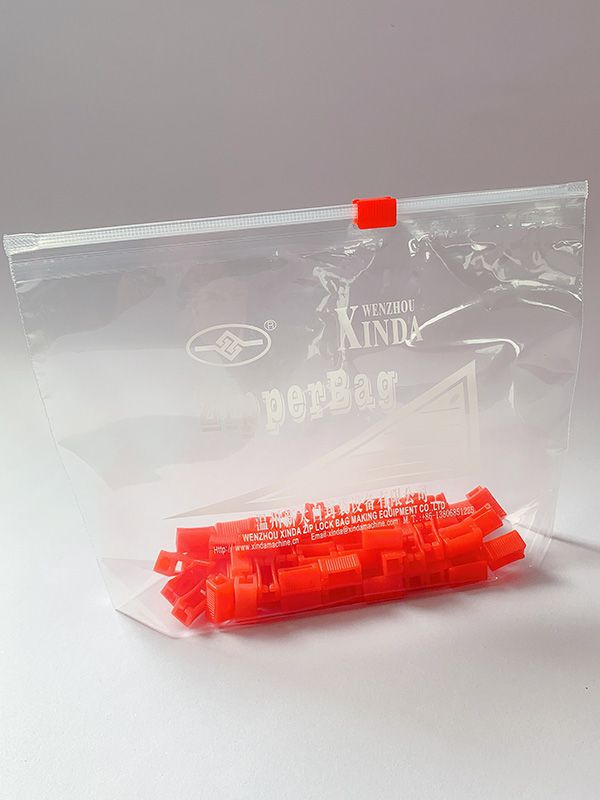

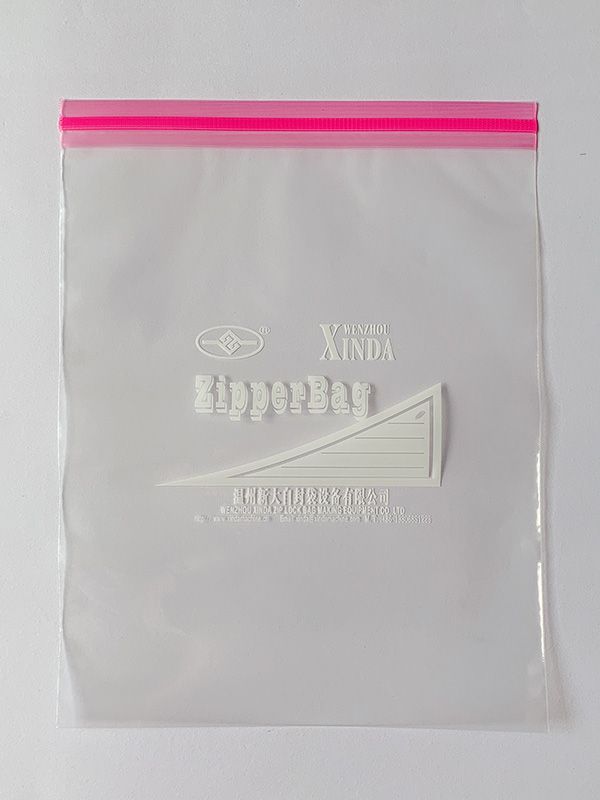

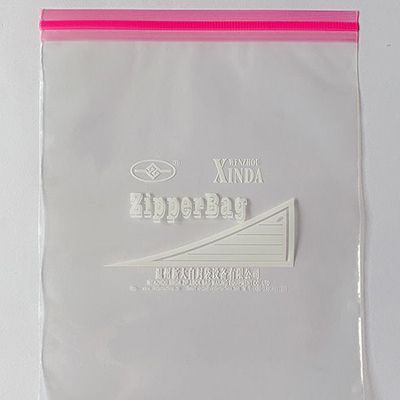

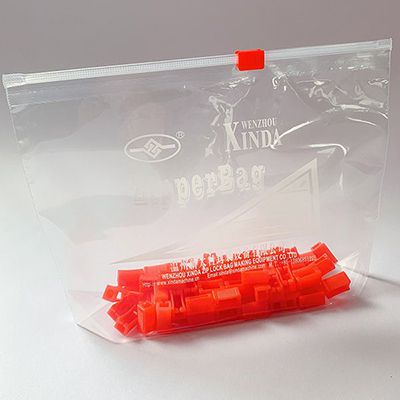

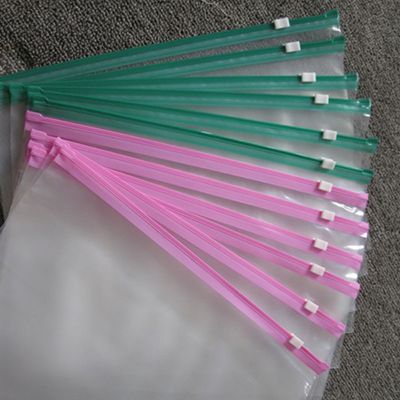

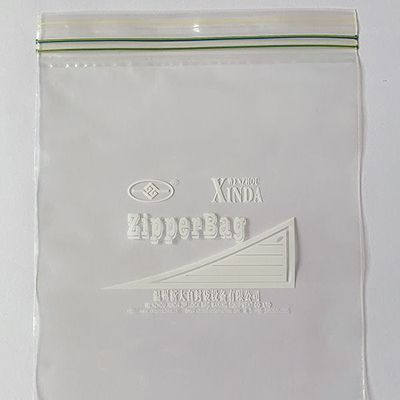

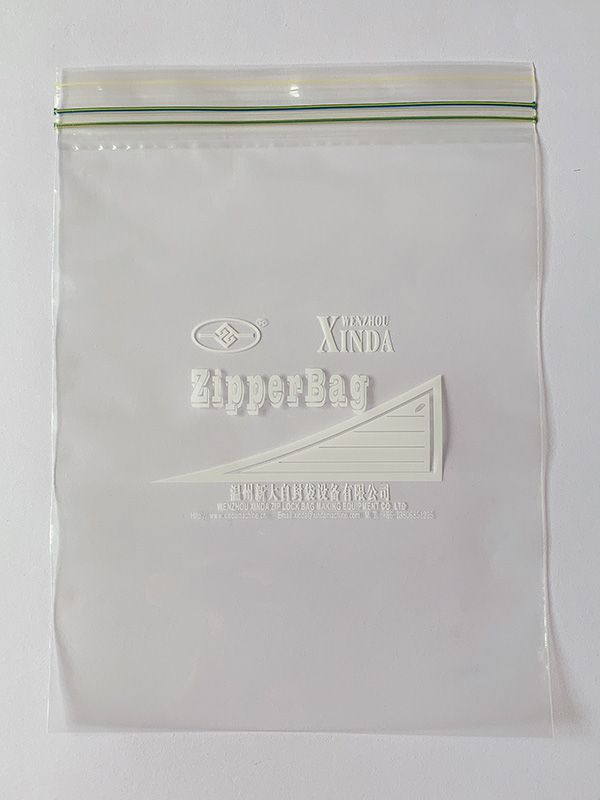

RT700B bag making machine is multi-functional and can efficiently produce various types of PE/PP attached re-sealable zipper bags, including string zipper bags, slider zipper bags, single-lock or double-lock zipper attached bags, etc.

When it works, different types zipper profile will thermal bonding onto the flat film and then converting into zipper bags. After that, bags are cut off on the silica gel plate instead of on the rubber covered roller, which results in strong hot sealing and ascetic edge folding.

Parameters
Model RT-700B
Production Capacity 40-100 piece/minute
Width of bag ≤630mm
Length of bag ≤650mm
Thickness of Film 0.03-0.07mm(one layer)
Heater Power 3.0kw
Total Power 12.5kw
Main Motor Power 3kw
Overall dimension 6800 x 1400 x 1850 mm
Standard Configurations
  • EPC film unwinding unit
  • Mouth & Bottom Gusset
  • Zipper Attachment Unit
  • Omron PLC computer controller system
  • Panasonic servomotor and servopack
  • Delta frequency inverter
  • Reinforcing rib silicon convey belt
  • Embossing aluminum pressing plate
  • Swinging arm type transmission
Optional Devices
  • Auto worktable
  • Ultrasonic sealing device
  • Chiller
  • Triangle folding Device
  • Slider auto-insert device system
  • Hanger attachment
