Compostable Zipper Bag Making Machinery

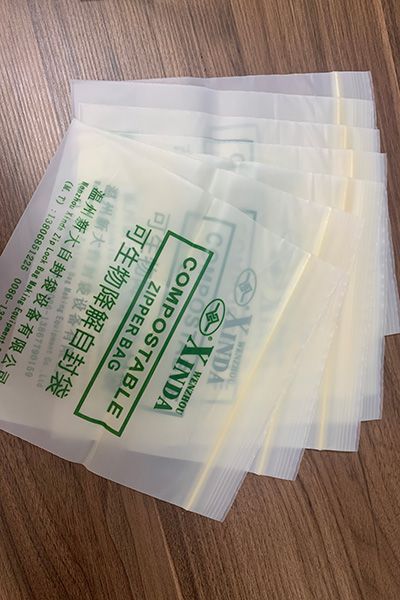

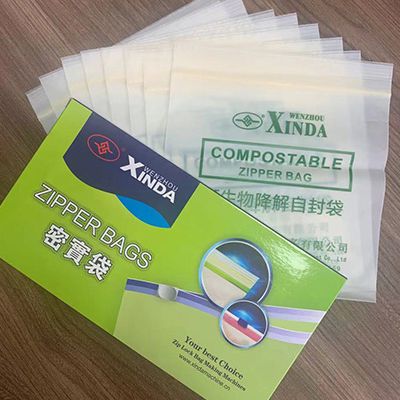

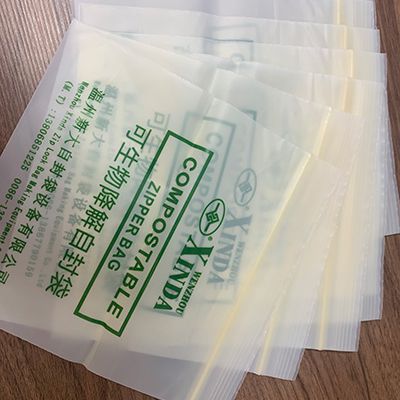

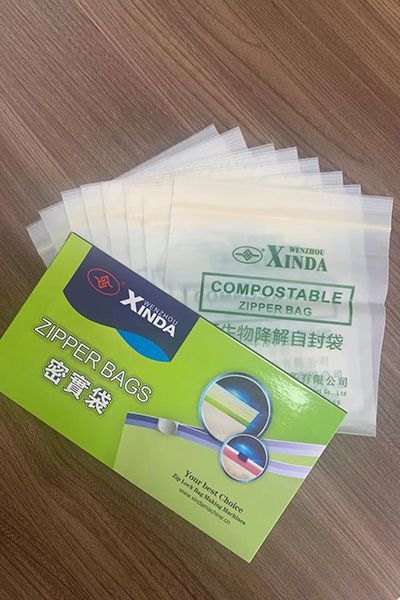

In order to make the compostable zipper bags and compostable kangaroo zipper bags, you need following machines.

SJ40 Compostable zipper bag Film Blowing Machine (5.2m)
Request a Quote
Main Technical Specifications
  • Applicable material: compostable material that is suitable for zipper bags
  • Film width: 110mm~350mm
  • Film thickness: 0.03mm~0.22mm
  • Speed: 8m/min
  • Output: 20kg/hour
    Output varies depend on material, cooling, bag size, zipper type, operator experience, etc.
  • Screw diameter:40mm
  • Screw L/D: 30:1
  • Heater capacity: 10kW
  • Power: 30kW
  • Temperature control: 5 Zone
  • Dimension: 5200x1600x5200 mm
Main Configurations
  • Main AC motor: 15kW + inverter (Delta)
  • Hard-teeth gearbox: 3-axis * 1 set
  • Screw / barrel material: 38CRMOAIA.
    (High quality alloy steel plated with chrome has the features of strong abrasive resistance, heat resistance and deformation resistance.)
  • Heating band of charging barrel: stainless steel outer cover with independent air blower, adopting porcelain hating circle.
  • Stainless steel material hopper
  • Air rings * 2 set (6 pcs)
  • Air blower * 2 set + inverter (Delta)
  • Automatic air inflation controller
  • Frame is increased 1 meter (5.2m)
  • A-bracket with four cooling fans
  • Broadened and reinforced stairs and barrier
  • Gravure printing with high power corona treatment and one cylinder
  • Three phase asynchronous motor: 1color 1.5 kW
  • Panasonic inverter:1 color :1.5 kW
  • Air blower: 250 W
  • Joint unit * 2 set
  • Take-up rubber roll * 2 sets
  • Take-up motor: turbine decelerating motor: AC Motor(1.1kW)+ Inverter (1.5kW) (Delta)* 2 sets
  • Zip film double reeling unit: torque motor(3N.m)* 2 sets
  • Main control panel and control cabinet
  • Electricity and switch: Schneider Brand
  • Temperature controller: Omron

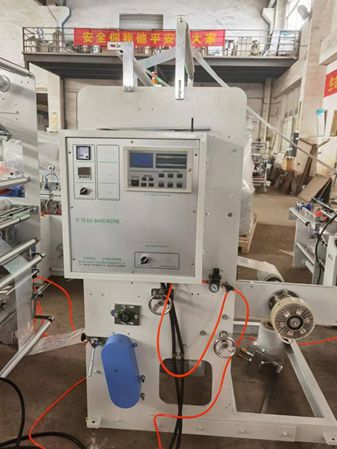

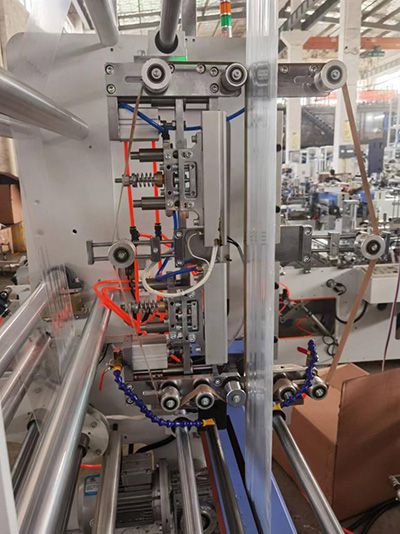

To make kangaroo zipper bag, you need this attachment (for the third layer) on the traction part of this production line)

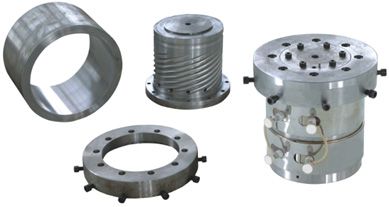

Die head
Please help me to finish this table for details of zipper bags.
Total length (mm) LIP (mm) Body length (mm) Thickness Die head
250 20 230 Die head 220mm

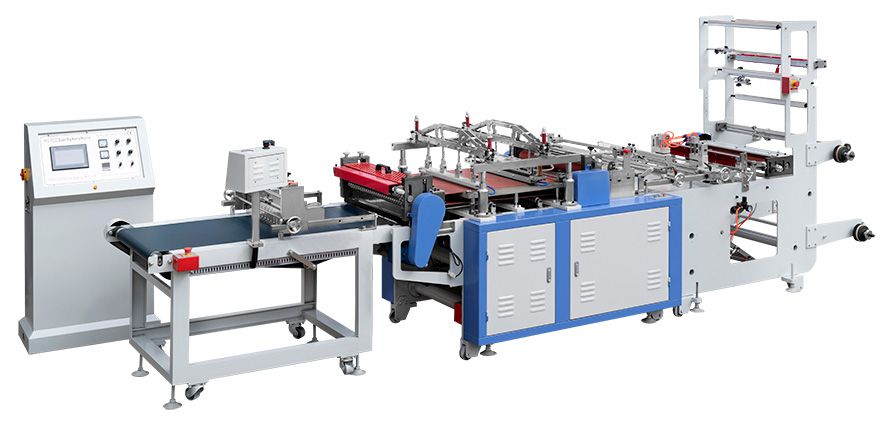

RFQ500C Zipper Bag Making Machine
Request a Quote
Main Technical Specifications
  • Bag type: different types of zipper bag
  • Bag length (Max): 430mm
  • Bag width (Max): 350mm
  • Bag thickness: 0.05-0.38mm
  • Speed: 40~150pcs/min
  • Power: 6.5kW
  • Heater: 2.0kW
Main Configurations
  • Material feed-in motor: 0.75kW AC motor + inverter (Delta)
  • Dancing roller controlled by the tension control unit
  • Displacement controller
  • Hole punch (⌀5) * 1 pcs
  • Photo cell: Omron
  • Perforating knife
  • Main motor: Cycloidal pinwheel AC motor(1.5kW/1.5kW) + inverter (Delta)
  • Material feeding rubber roller * 1set: servo motor (Panasonic)(1.5kW/2kW) + driver (Panasonic)
  • Copper sealing knife and embossing cooling plate * 1 set
  • Silicon Belt: domestic gel with reinforcing rid * 2 pcs(one on machine, one for spare)
  • Material feed-out motor: 400w AC+ inverter (Delta)
  • Static Eliminator
  • Auto worktable stacker for finished bag
  • Touch screen interface : Omron
  • PLC control system: Omron
  • Electrical configuration: Schneider (switch) and Omron (temperature controller), etc.
