JL45B Zipper Extruder, Zipper Tape Extrusion Line

Request a Quote

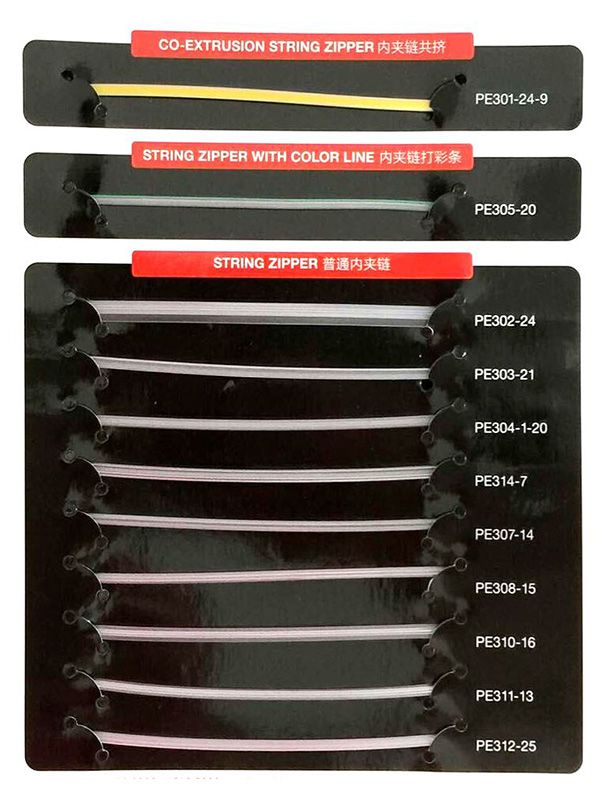

JL45B plastic extrusion line can produce various types of zipper profiles by changing its mould, which can be designed according to your samples or specific requirements. It is our basic and standard type of zipper profile extruders, its quality and reliability are proven by time and have earned market recognition. If you are looking for an economic and high performance

Parameters
Model JL45B
Material LDPE,PP
Production Speed 10-50
Zipper Width 3-50mm
Thickness of zipper 0.3-2.2mm
Diameter of screw 45mm
Draw ratio of screw 25:1
Power of Main Motor 5.5kW
Power of the auxiliary motor 1.1kW
Power of dehydration and drying 2kW
Zipper winding unit 1.1kW
Heater Power 6.8kW
Total Power 22kW
Overall Dimension 9350*1300*2200mm

Production Line Composition

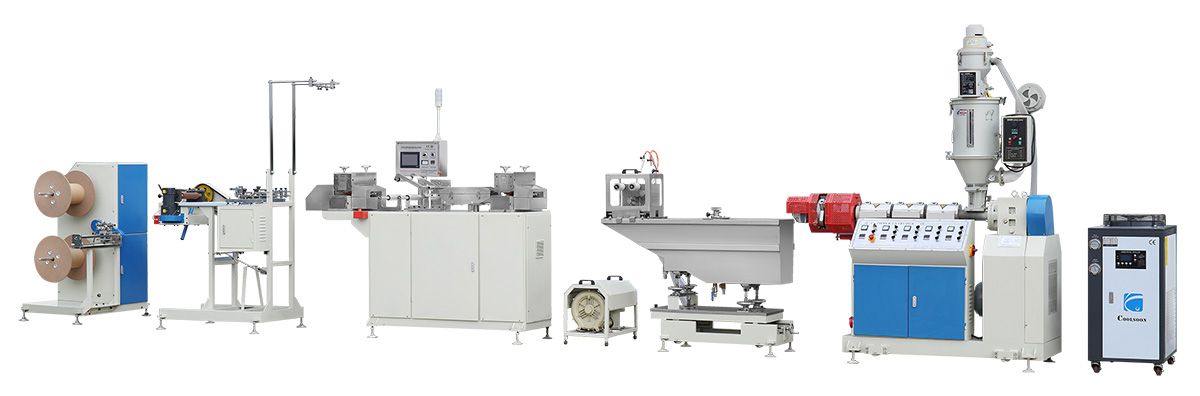

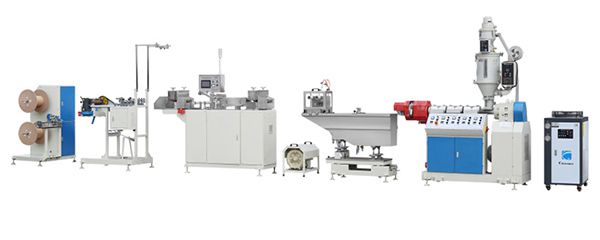

This extrusion line consists of Chiller, main extrusion part, die head, automatic filter changer system, die plate, water tank (form the zipper at constant temperature), dehydrating system and air-drying unit with Vacuum blower, zipper traction part, auto zipper-closing part and zipper rewinding unit. The die plate of zipper can be designed according to customers’ sample or drawing.

Optional Device
  • Die plates for different types of zipper
  • Teeth Device on zipper Closing unit
  • Teeth Device on zipper traction unit
Features
  • The mould of our JL-45A zipper extruder adopts the advanced 45 degree extrusion, and it is easy and convenient to be assembled and disassembled from the machine.
  • Our zipper extruder is equipped with the stainless steel storage tank.
  • According to the special demand of the material flow rate in the process of producing zippers, the charging barrel and screw of our equipment are made from high quality alloy steel, which is chrome plated, resulting in strong resistance to abrasive, extreme heat and deformation.
  • Our zipper extruder's motors adopt Panasonic frequency converters, well-known hard surface reducer and the torque motor reeling machine, which ensures our zipper equipment's stable performance and high production capacity.
