JL45D/60D Co-extrusion Zipper Extruder

Request a Quote

JL60D co-extrusion line is specially designed to make the low-temp sealable Zipper Profile. This extrusion line can produce various types of zipper profiles with different feature in different colors as your requirement by co-extrusion way and changing the die plates.

Parameters
Model JL45D JL60D
Draw ratio of screw 25:1 45:1
Material LDPE,PP LDPE,PP
Production Speed 10-50 10-50
Zipper Width 3-50mm 3-50mm
Thickness of zipper 0.3-2.2mm 0.3-2.2mm
Diameter of screw 45mm/30mm 45mm/30mm
Power of Main Motor 5.5kw+ 5.5kw+
Power of the auxiliary motor 1.1kw 1.1kw
Power of dehydration and drying 2kw 2kw
Zipper winding unit 1.1kw 1.1kw
Heater Power 6.8kw 6.8kw
Total Power 22kw 22kw
Overall Dimension 9350*1300*2200mm 9350*1300*2200mm

Features

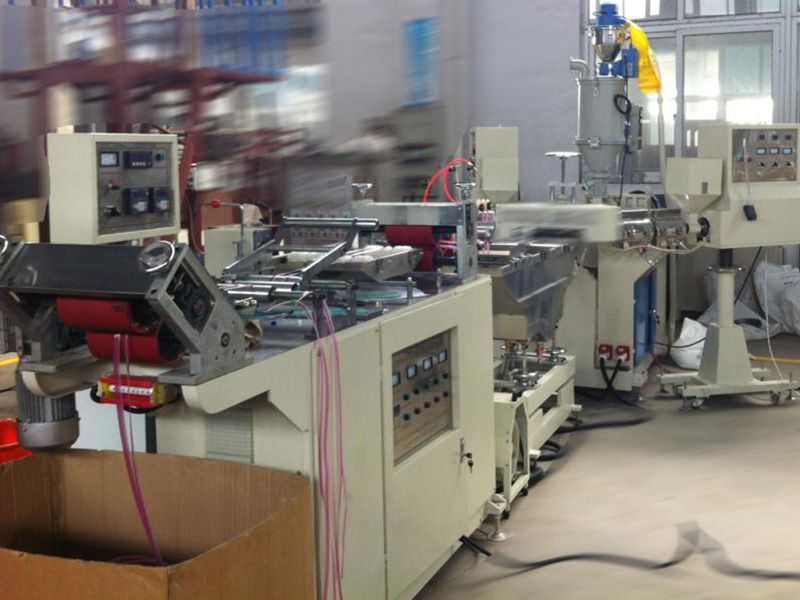

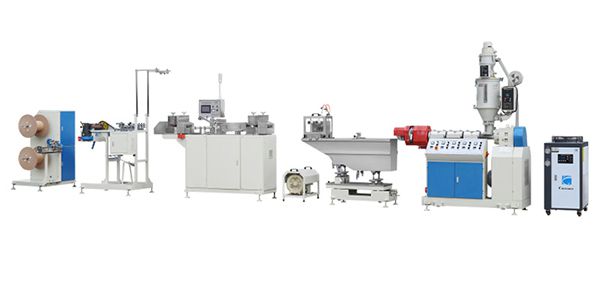

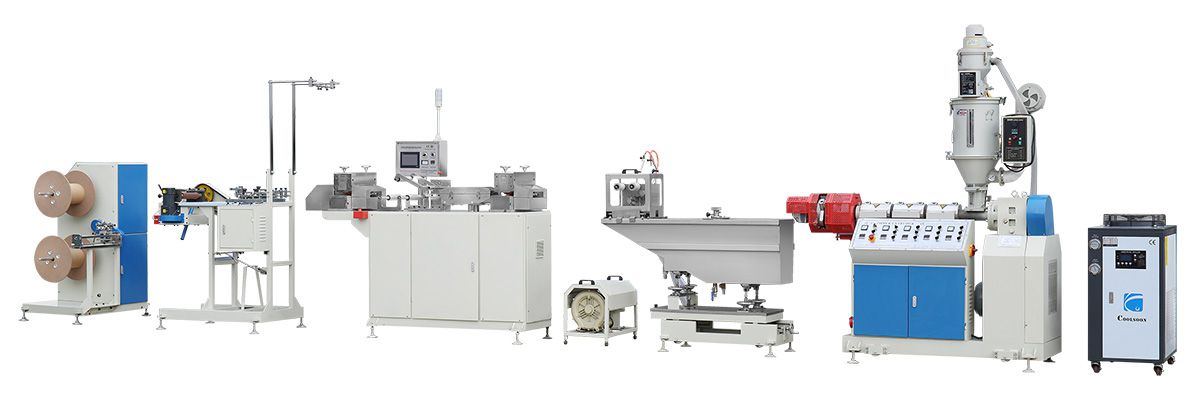

This extrusion line consists of Chiller, one main extrusion part, two sets Mini JL30 Extruder for color strip, Colored zipper die head, automatic filter changer system, Colored zipper die plate, water tank (form the zipper at constant temperature), dehydrating system and air-drying unit with Vacuum blower, zipper traction part, auto zipper-closing part and zipper rewinding unit.
The zipper die plate of zipper can be designed according to customers’ sample or drawing.

Optional Equipment

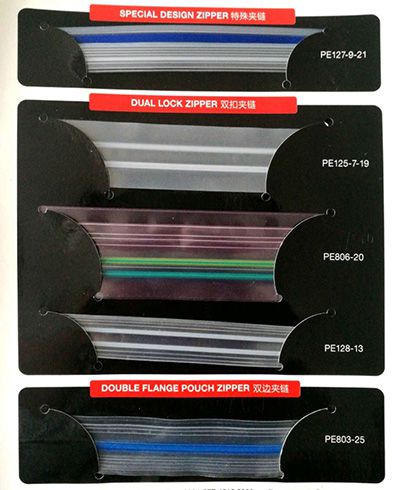

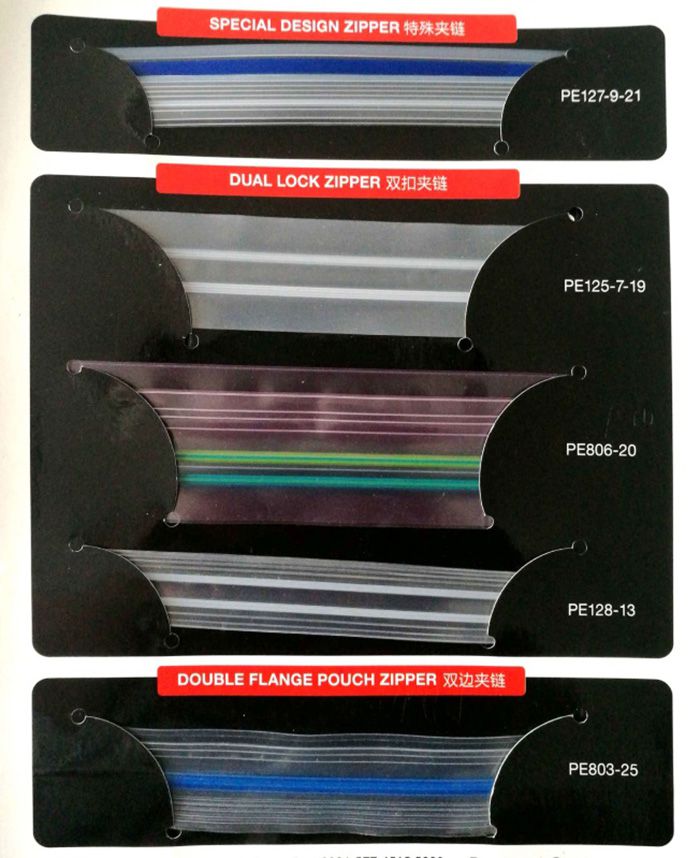

  • Die plates for different types of zipper
  • Teeth Device on zipper Closing unit
  • Teeth Device on zipper traction unit
Packaging & Shipping
